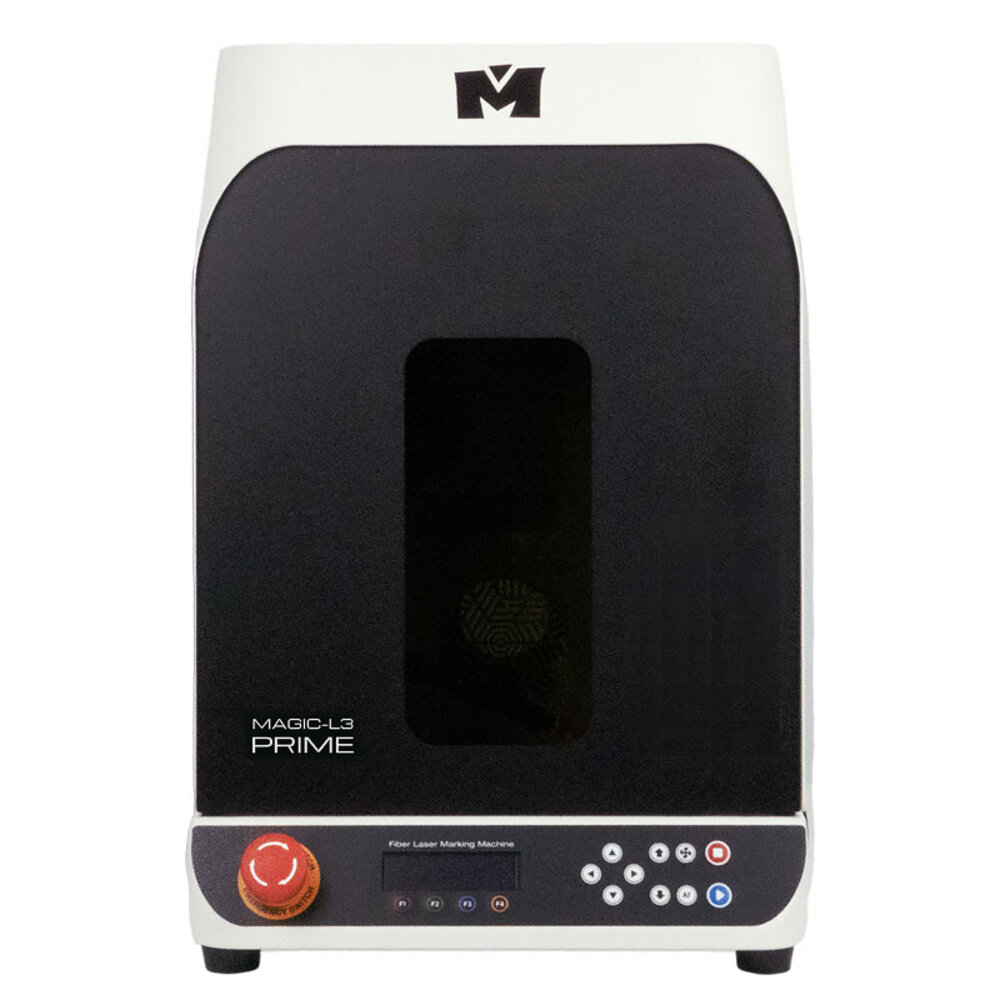

The Magic-L3 PRIME is a professional laser engraving machine with a 100W MOPA laser, developed for goldsmiths, jewellery designers and professional workshops requiring precise and efficient engraving and cutting. The machine combines high cutting speed with advanced ring engraving capabilities and a 13 MP camera, making it easier to position designs accurately.

Advanced ring engraving

The L3 PRIME offers significant improvements in ring engraving. Its advanced rotary system detects the geometry of the ring and can automatically adjust the engraving to the ring’s angle and shape.

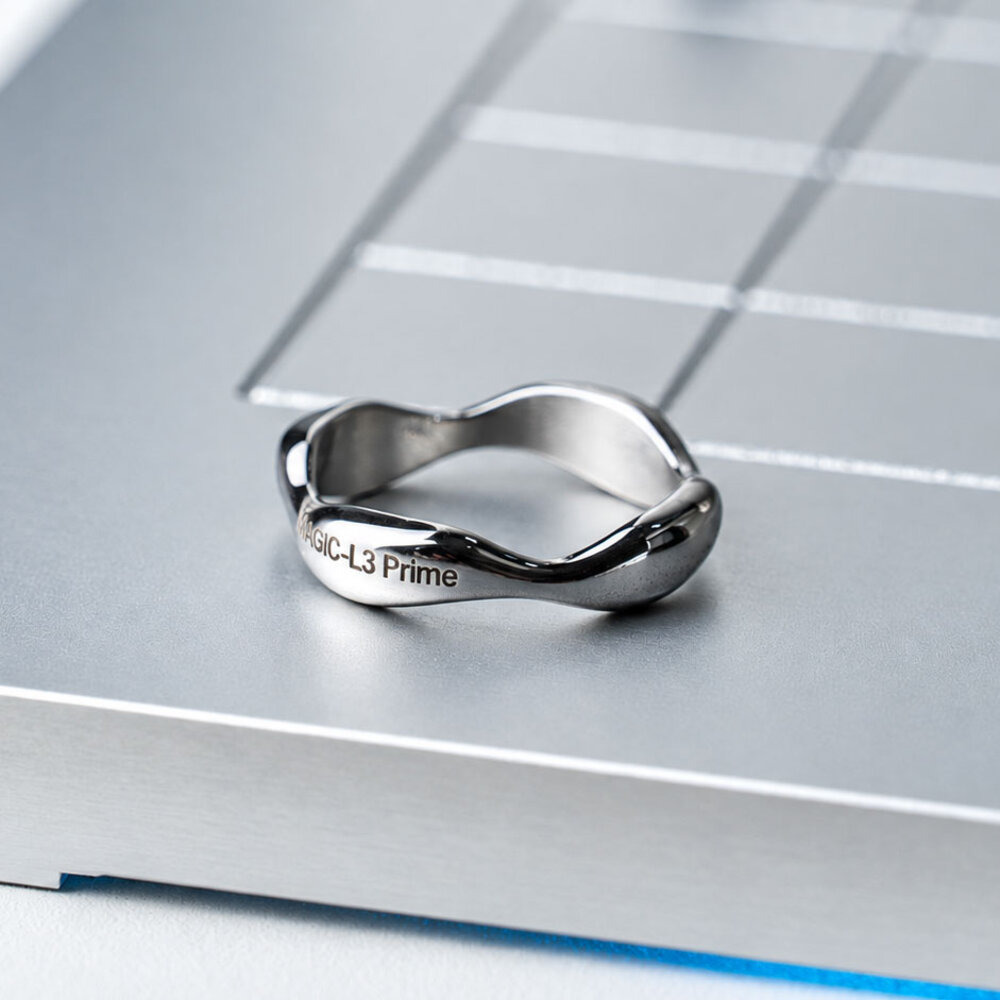

This allows you to work more efficiently with both traditional and more complex ring shapes, including zigzag-shaped rings, which can be difficult to work with using conventional rotary systems.

The machine also automatically switches between workflows for inside and outside ring engraving, reducing the need for manual adjustments.

Faster cutting with a 100W MOPA laser

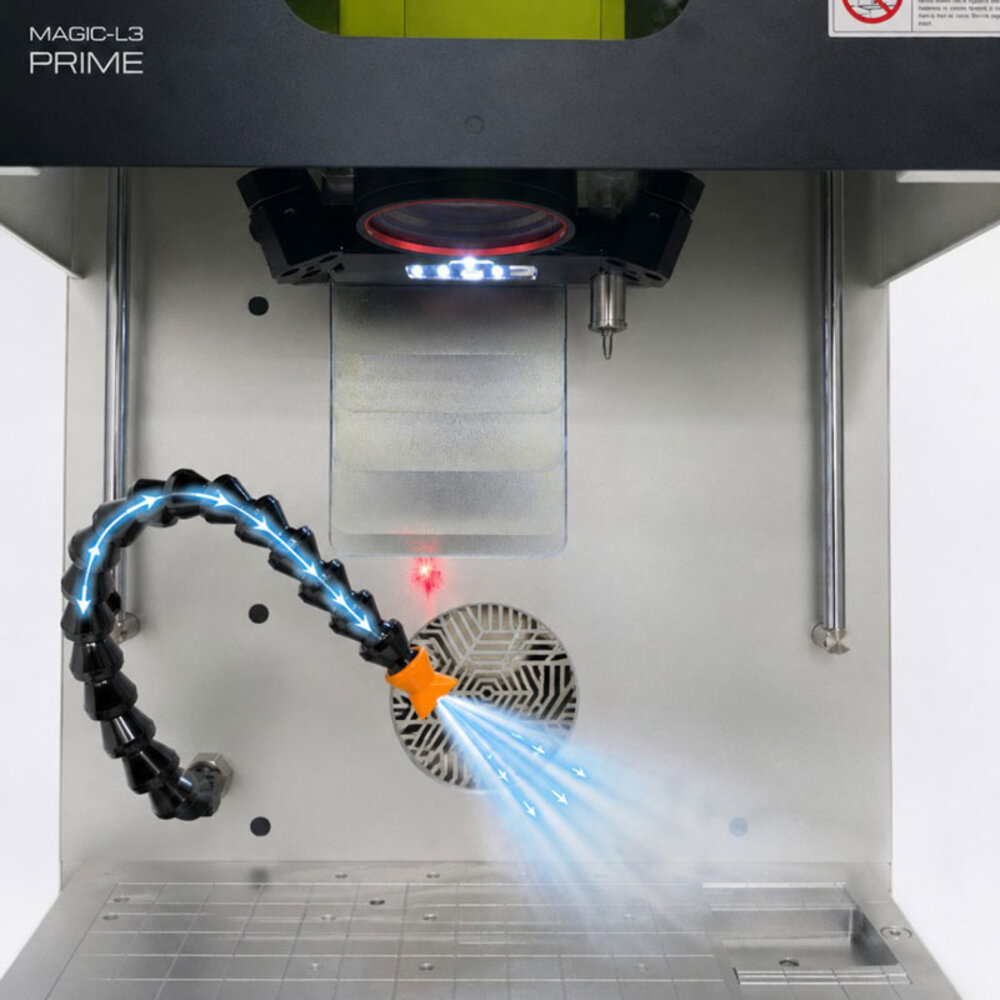

The powerful 100W MOPA laser provides improved cutting performance, allowing you to work faster with precious metals. Optimised airflow contributes to a cleaner cutting process and efficient removal of material and particles.

13 MP camera for precise positioning

The laser engraving machine is equipped with an integrated 13 MP camera, providing a sharp live preview and making it easier to position the design precisely on the workpiece. The camera can also be used to detect complex ring shapes and reconstruct the ring’s geometry, allowing the design to be positioned correctly on curved or irregular surfaces.

The high resolution is particularly useful when working with valuable jewellery, where precise positioning and minimising errors are essential.

Designed for the professional workshop

The L3 PRIME is designed with an efficient workflow in mind, from setup to finished engraving. Its compact construction, improved rotary adjustment and dedicated extraction system make the machine suitable for jewellery stores, goldsmith workshops and smaller production environments.

Benefits:

• 100W MOPA laser with improved cutting performance
• 13 MP camera for precise positioning and adjustment
• Automatic detection of ring shape
• Supports engraving on curved, angled and irregular rings

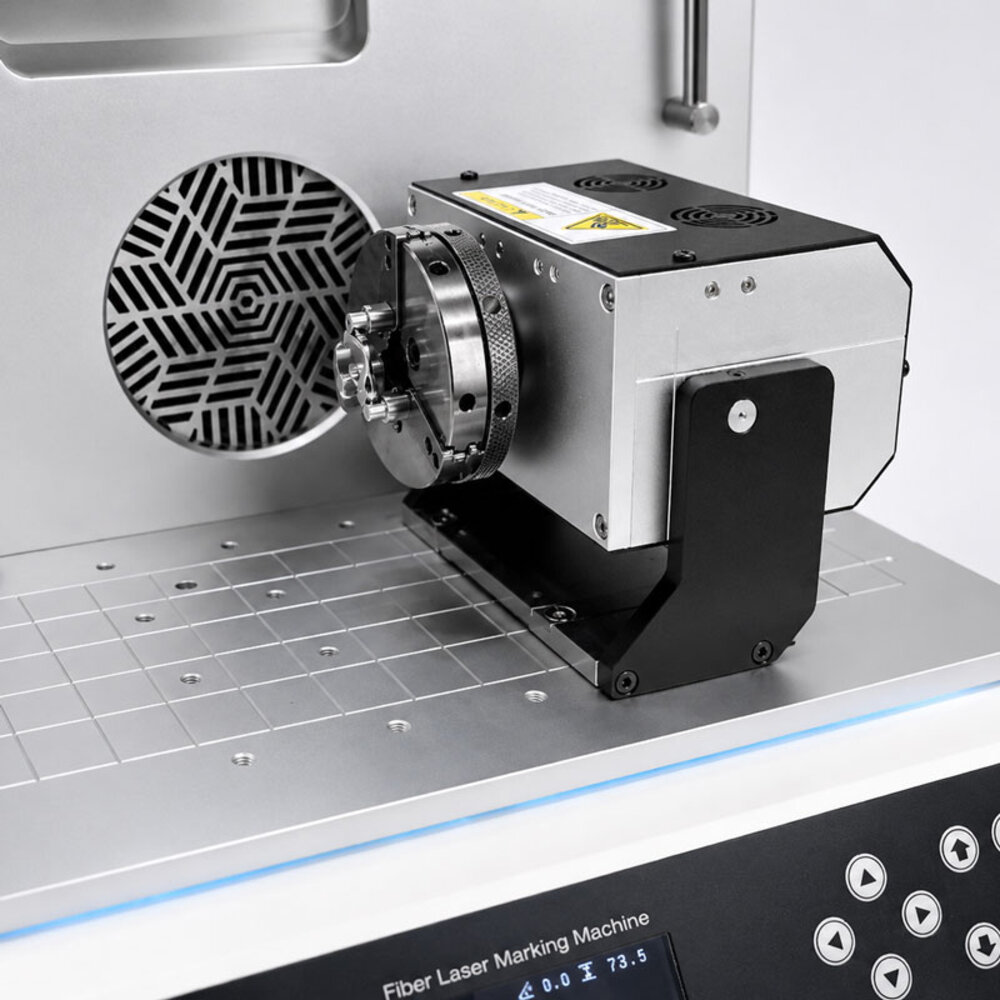

• Wireless rotary system with quick installation and removal
• Automatic adjustment of the ring engraving angle
• Automatic switching between inside and outside ring engraving

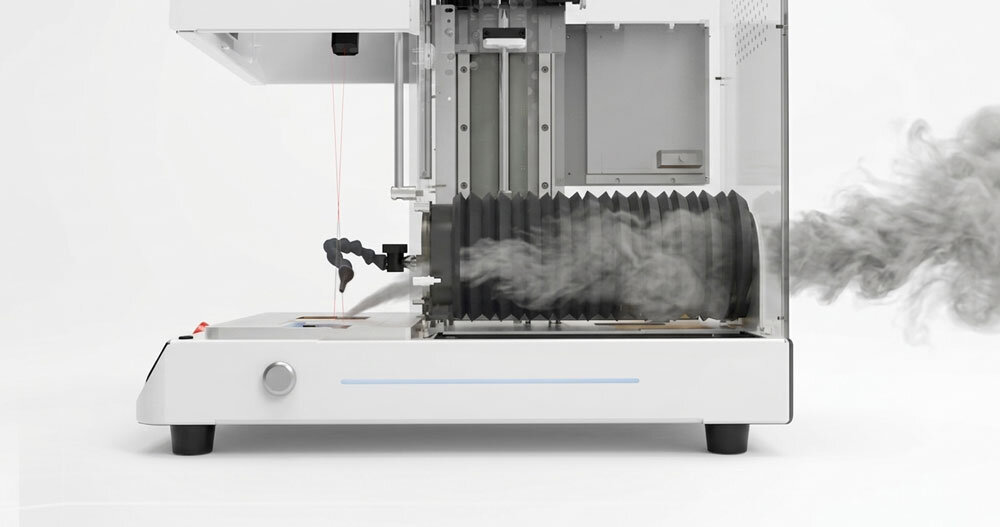

• Optimised airflow and dedicated extraction system
• Improved adjustment of the rotary unit
• Compact design for professional use

Technical Specifications:

• Model: 100W MOPA
• Laser class: Class 1 Laser Product
• Max material height: 95 mm
• Max Z stroke: 95 mm
• Chamber size: 350 mm (W) × 100 mm (H) × 170 mm (D)
• Safety door open height: 266 mm
• Max material weight: 20 kg
• Max engraving area: 110 mm × 110 mm × 95 mm
• Max camera area: 80 × 80 mm
• Camera resolution: 13 MP
• Cooling system: Air cooling
• Temperature / humidity: 0–40°C / 10–85%
• Power supply: AC 100–240V, 50/60Hz
• Power consumption: 730W
• Dimensions: 394 mm (W) × 577 mm (H) × 609 mm (D)
• Weight: 54 kg
