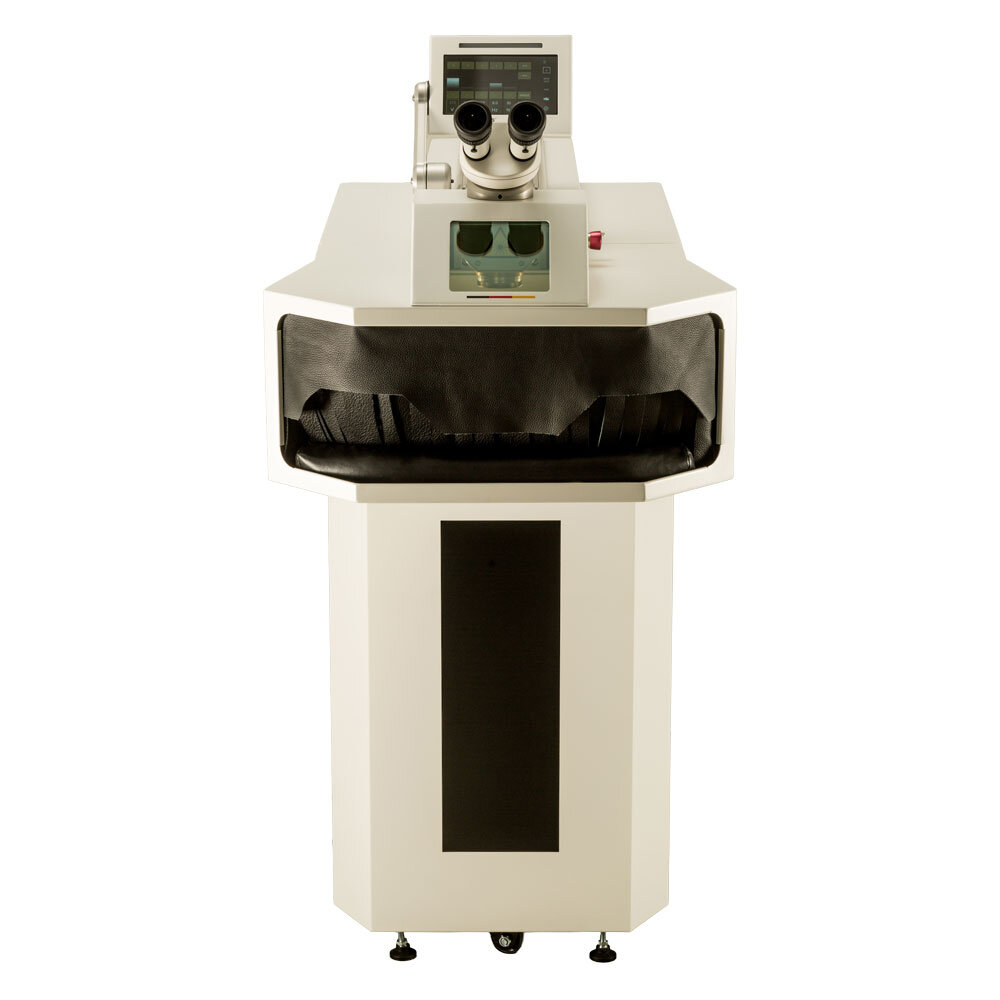

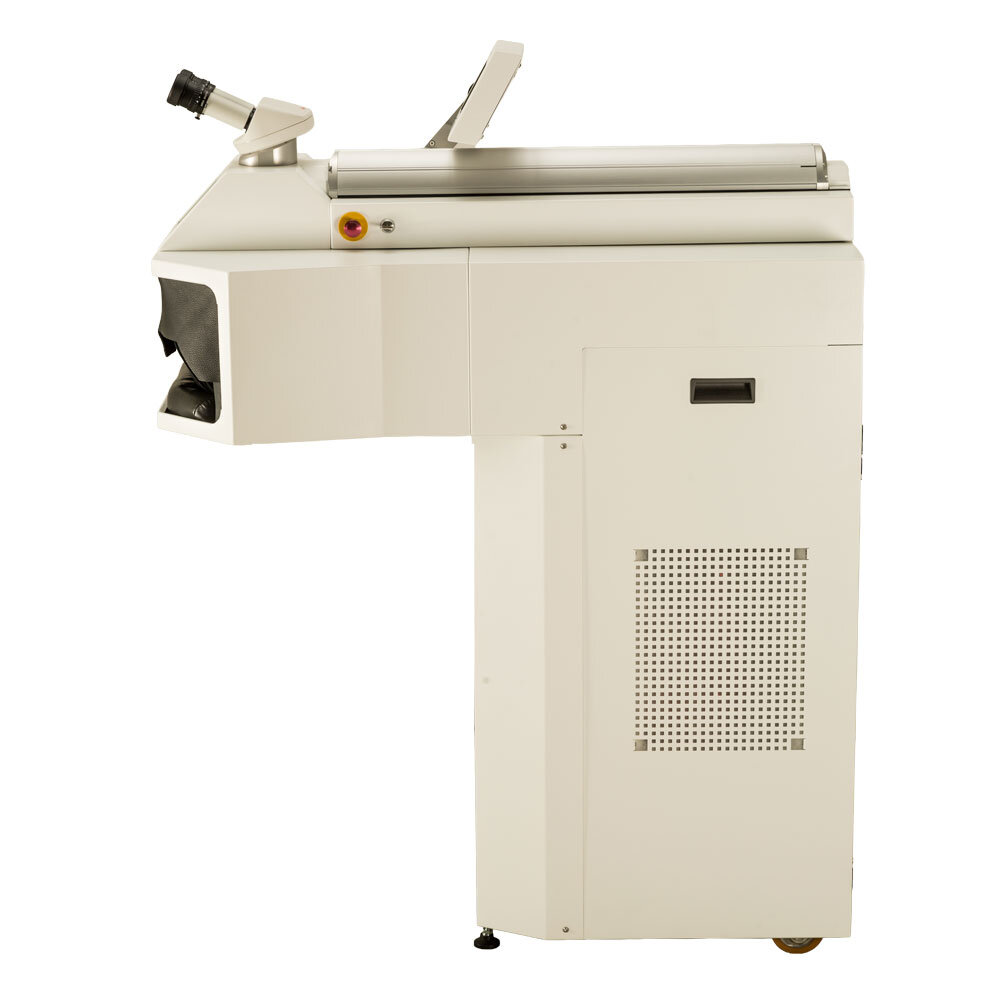

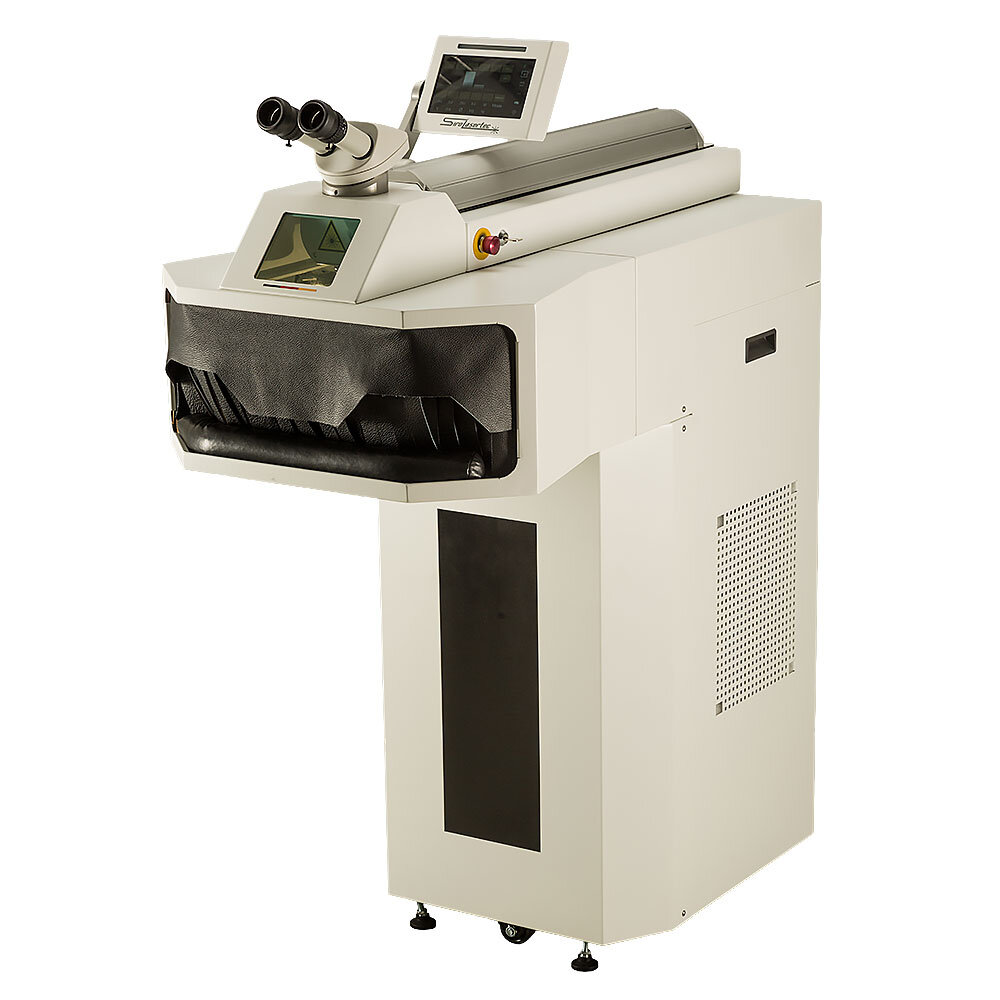

SL60 is a flexible and powerful laser welder developed for professionals who require precise processing of both small and large workpieces. With a spacious working area and a practical front opening, the SL60 makes it easy to handle larger and more complex components while maintaining the high level of precision and safety that characterises laser welding.

With an average laser power of 150 W and a peak power of up to 15 kW, the SL60 provides the power required for demanding welding tasks in various metals and alloys. The high pulse frequency of 50 Hz also makes it suitable for laser polishing, where controlled and uniform surface treatment is required.

The large working chamber and flexible front opening with a laser-safe leather curtain allow for easy loading and unloading of larger components. This makes the SL60 particularly suitable for applications where traditional laser welders may be limiting. The combination of flexibility, high precision and a spacious working area also makes it suitable for industrial production, where varying workpiece sizes and the need for a reliable welding solution are essential.

The laser welder is built with a robust stainless steel construction and is designed for professional daily use. Its energy-efficient design and low maintenance requirements make the SL60 a reliable solution for workshops seeking high flexibility and precision in their production.

The SL60 can also be equipped with additional options such as a micro-welding function and rotary axis, further expanding the machine’s range of applications.

Tecnical data:

• Peak pulse power: 15 kW
• Max average power: 150 W
• Pulse frequency: 0 - 50 Hz
• Pulse duration: 0,2 - 20 ms
• Spot diameter: 0,2 - 2,0 mm

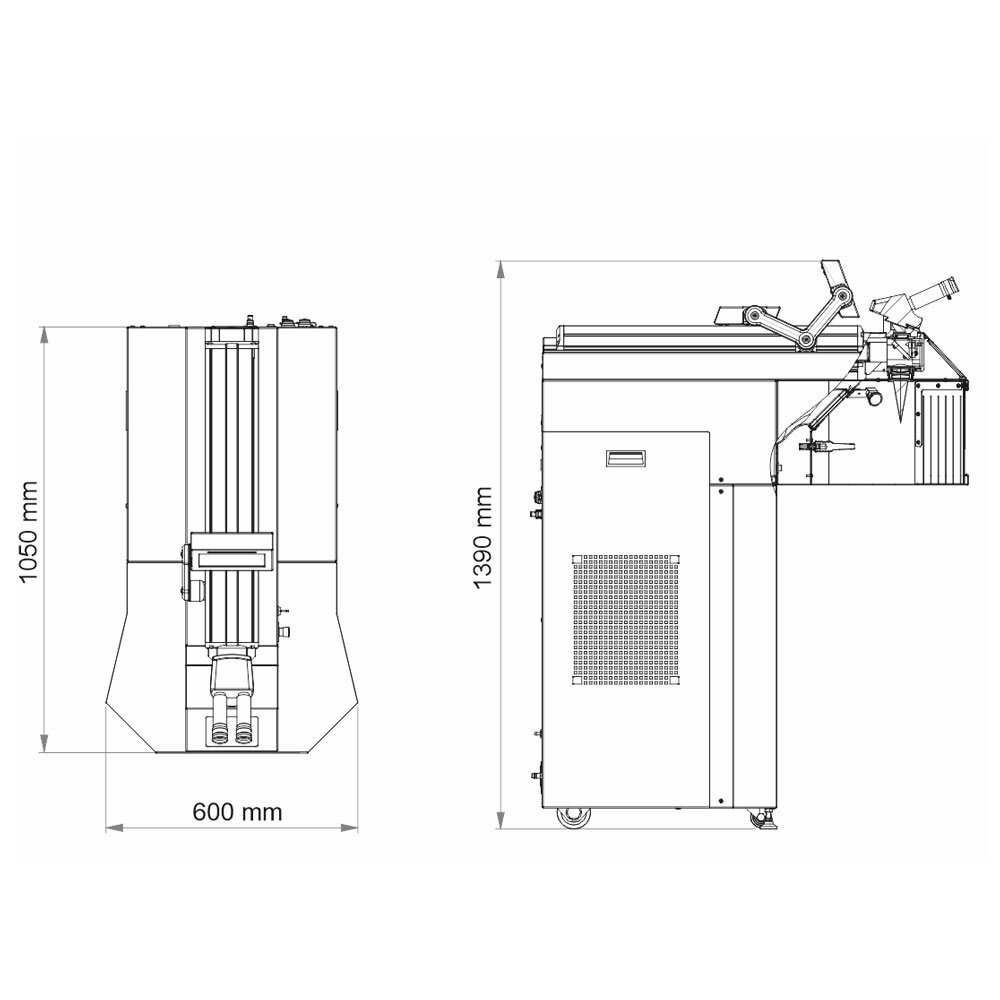

• Dimensions: 1050 x 600 x 1390 mm
• Weight: 146 kg
• Program memory: 39

Options:

• Micro welding: 0,05 – 0,2 mm

NOTE: To ensure trouble-free operation of the laser, a grounded 220 - 240 V power line with a 16 A fuse is required.

If you would like more information, you are always welcome to contact us.
